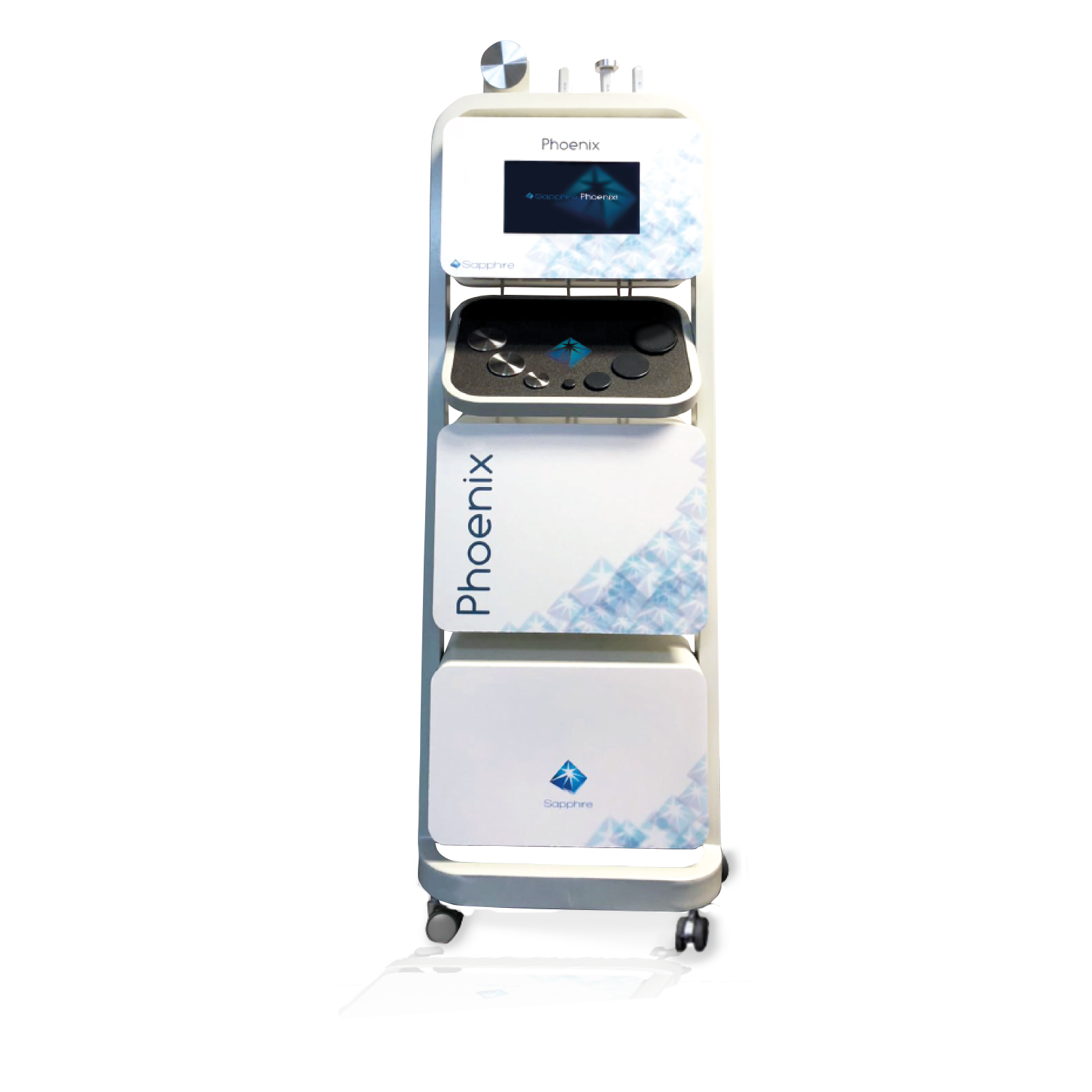

SAPPHIRE Phoenix

RADIOFREQUENCY
CAPACITIVE | MONOPOLAR RESISTIVE | RESISTIVE BIPOLAR | PHOTOBIOESTIMULATION

The Phoenix uses the monopolar capacitive frequency increased (448 KHz) to reach the optimum depth necessary to act on the dermis and induce the fibroblasts to produce new collagen, with a more homogeneous heating and deep that equipment that uses multiple electrodes. Radiofrequency diathermy is a safe method, works very well in all types and layers of the skin to revitalize it in a natural way.

icona servizi plusCapacitive diathermy

The flow constantly changes polarity, heat is generated mainly by the friction of bipolar molecules. The water is the substance of the organism that more dipolar molecules have, therefore, the current acts on the tissues that contain greater content in water mainly muscular and vascular.

icona servizi plusDiathermy Resistive

The electric flow enters into the body more directly. In this case the temperature increases in tissues and with greater electrical resistance on adipose tissue. The resistance of the fat is about ten times higher than that of the dermis tissue. In this case, the thermal effect in adipose tissue and cell membranes predominates.

icona servizi plusBipolar Resistive DiathermyIn

In this case, the treatment electrode has an output electrode and a return electrode embedded in the same head-tip, so that the flow is in constant movement from one pole to the other.

icona servizi plusTHE PHOTOTHERAPY (Photoporation)

The therapies in which we apply LED light are known as Photodynamic Therapies. Photoporation is another technique that helps the care of our skin. Red light is what will act as anti-wrinkle and as skin rejuvenation therapy. Infrared use long wavelength, so they can penetrate deep into the skin. So, Fibroblasts are activated, which are responsible for the formation of Collagen and Elastin.

icona servizi plusWHAT DOES RADIOFREQUENCY?

Radiofrequency is an electromagnetic emission which is transformed into a thermal energy.

icona servizi plusVALID METHOD AGAINST TIME

The Diathermy generates a deep cellular activation with the following three essential effects.
• Athermics: increase cellular metabolism Activate cellular nutrition
• Thermics: increase of micro-circulation, Improvement of blood flow, Activates tissue oxygenation, Promotes drainage
• Hiperthermics: improves blood flow Activation of metabolism, Drainage of catabolic products Tissue restructuring

Technical data sheet

Technical characteristics

Maximum consumption200 W
Capacitive Rf power50 VA
Resistive Rf power25 W
Power bipolar resistive Rf25 W
InterfaceScreen color 10´´ Touch Screen Back light LED

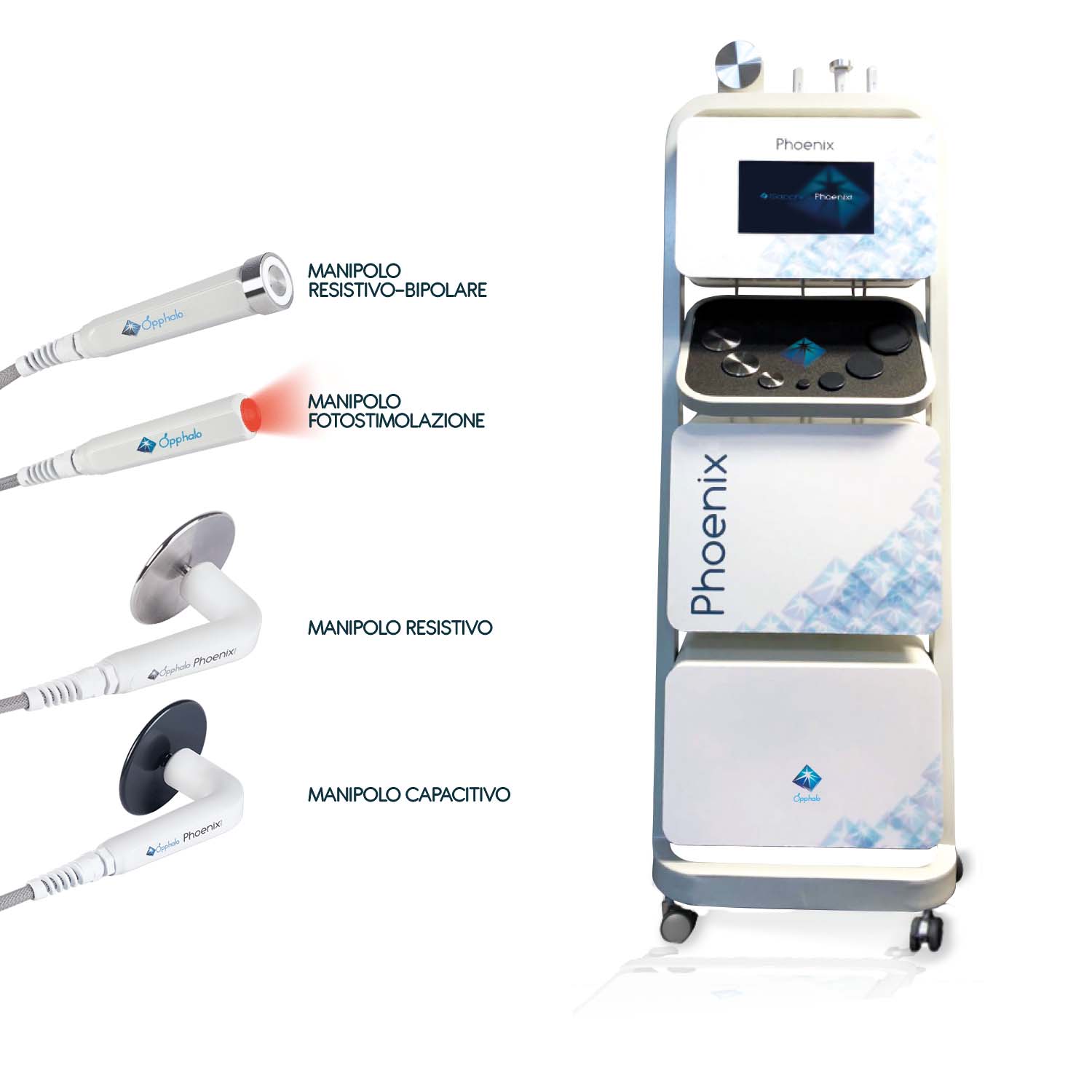

Applicators

Capacitive electrodesø 20 / 40 / 60 / 80 mm
Resistive electrodesø 40 / 60 / 80 mm
Return plate14x20 cm
Bipolar resistive electrodeø 40 mm
RED LED (650nm)3 W
Output frequency448 khz ± 3%
